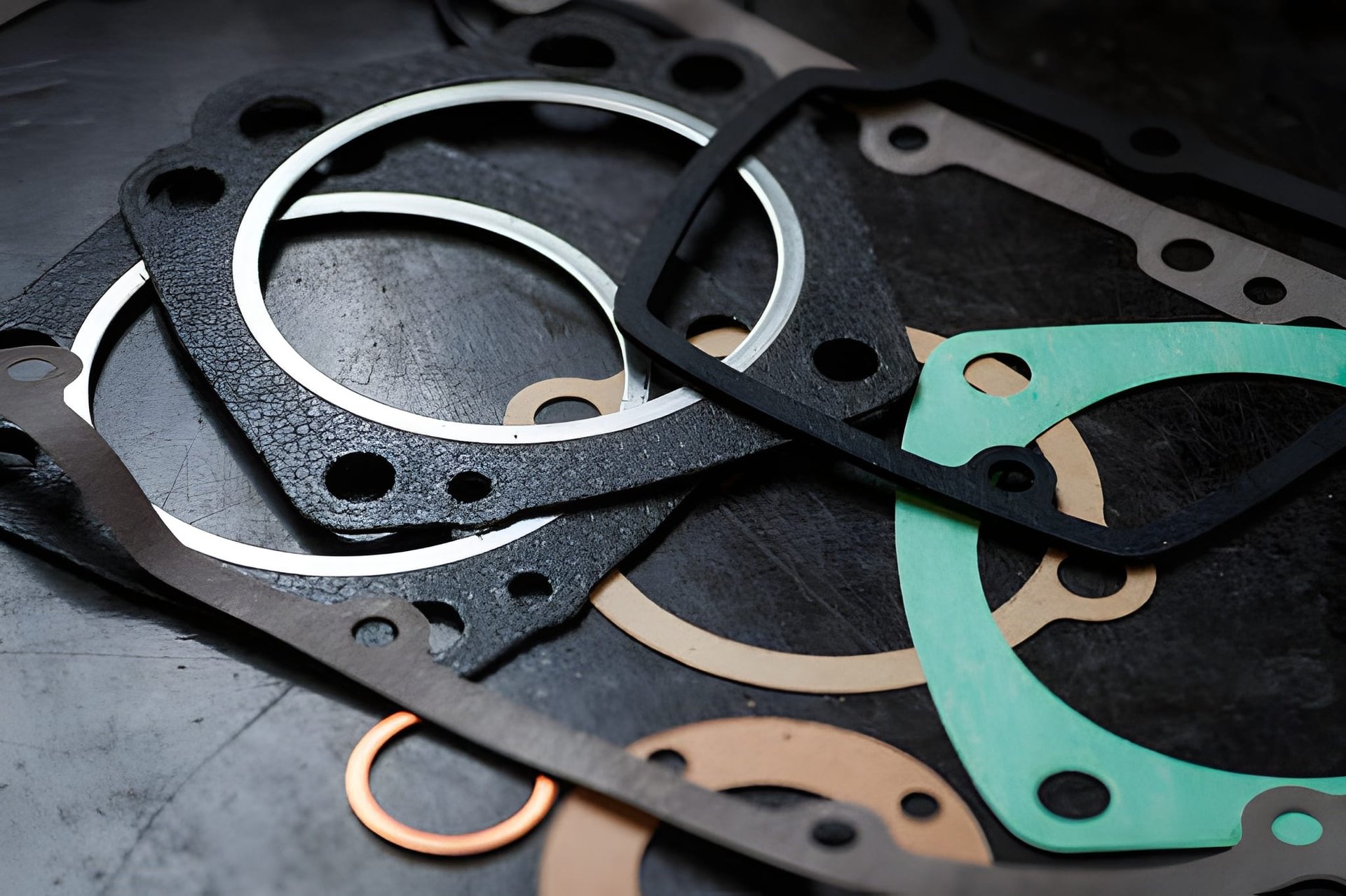

The Gasket production is a meticulous process that entails selecting the appropriate material, such as rubber, silicone, or metal, and employing various manufacturing techniques, including die cutting, compression moulding, or punching, to construct the final product. These methodologies are designed to shape the material according to a specific design, enabling the creation of seals for various industrial applications.

Key steps in gasket production

• Design and material selection: The process begins with designing the gasket shape and selecting a suitable material, such as EPDM, nitrile, silicone, or graphite, depending on the specific application requirements, including factors like chemical resistance and temperature tolerance.

• Material preparation: The raw materials, such as rubber, undergo preparation through mixing and rolling to attain the desired consistency and elasticity.

• Forming the gasket: Various methods are utilised to form the gasket shape based on the type and volume of the gasket required

  Cutting: Techniques, including rotary die cutting, flatbed die cutting, digital knife cutting, or water jetting, are employed to cut gaskets from sheets of material. Punching remains a traditional approach wherein a steel strip is pressed through the material to achieve the desired shape.

  Moulding: Compression moulding or injection moulding processes utilise moulds to form the gasket. For spiral wound gaskets, a metallic strip is wound together with a filler material onto a mandrel.

FLASH CAD

Gasket Design and Drafting Capabilities..

Designing gaskets according to standards and codes

In-depth progression of gasket design from ideas

Creation Custom New Gasket Designs

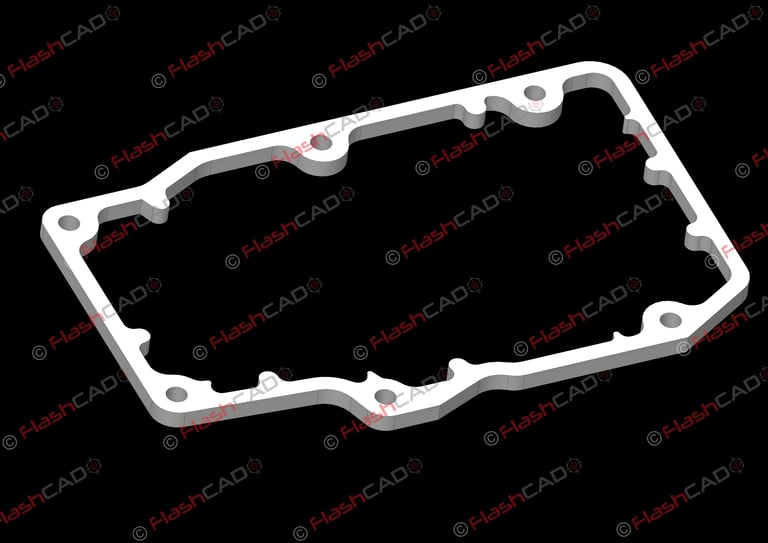

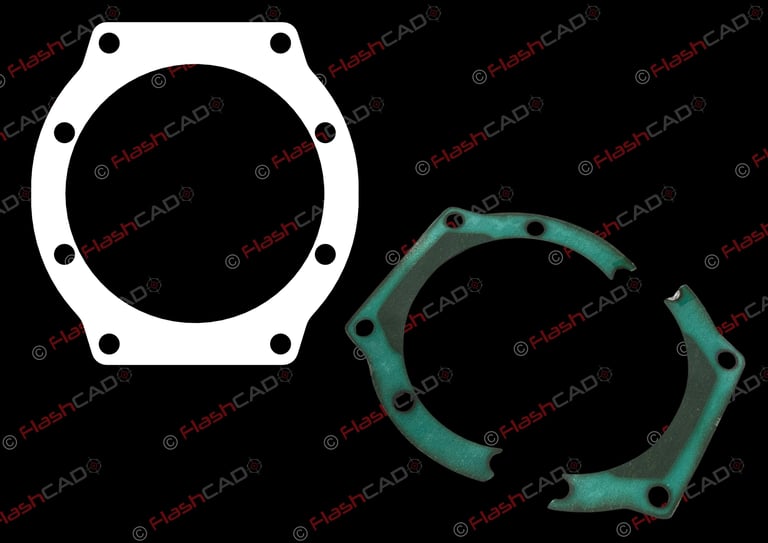

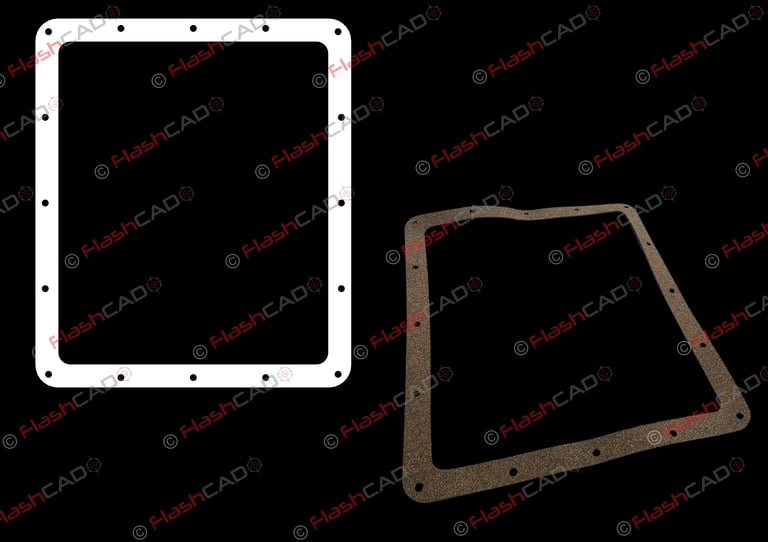

Sample Gasket reverse engineering

We can help with design

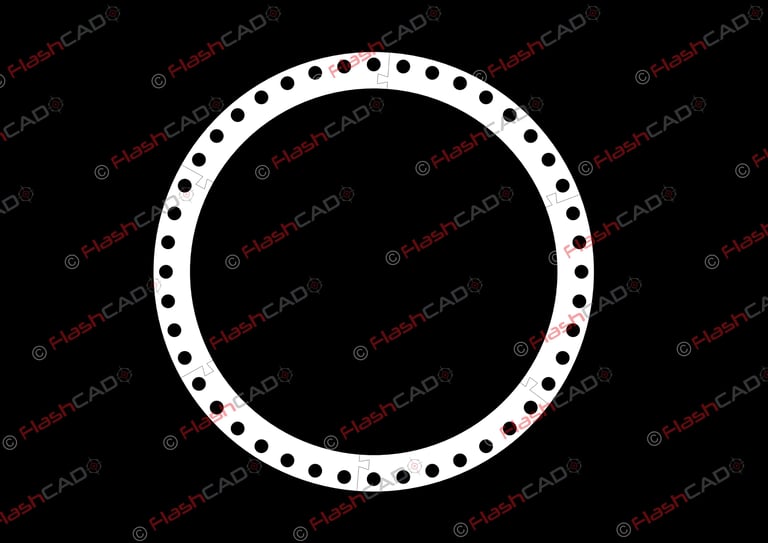

• Standard flange gasket

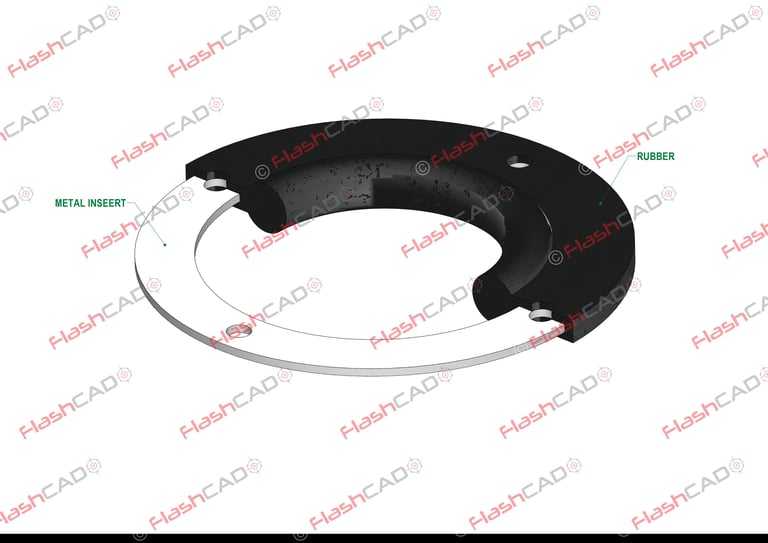

• Special profile gasket

• Spiral wound gasket

• Kamm profile gasket

• Ring type joints (RTJ)

• Metal jacketed gaskets

• Sentry gasket

• Egraflex steelflon waveline-wlp ® gasket

• Corrugated graphite gasket

• Soft cut gaskets

• Full face gasket

• Ring gaskets

Your partner for the development and production of the industry-leading range of gaskets and sealing materials.

Flash CAD is a pioneer in gasket production, dating back to 2015.

We provide all the drafting needs of metallic, semi-metallic and soft-cut gaskets that meet the industry and quality requirements of our global customers.

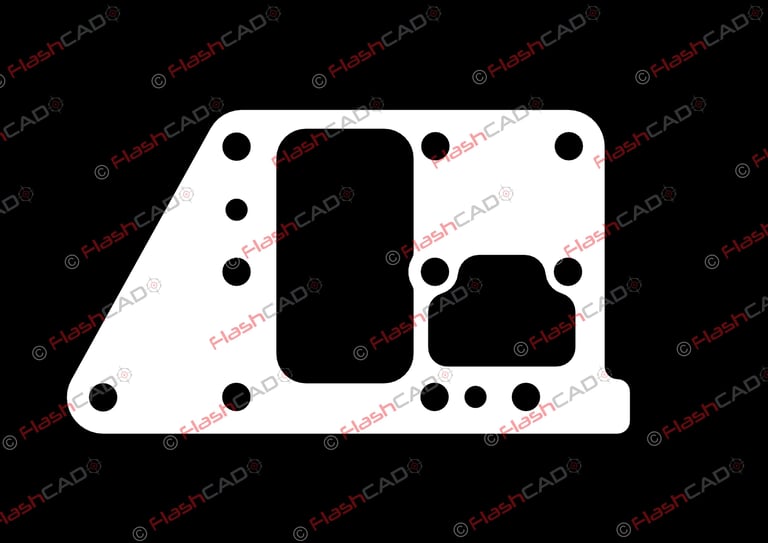

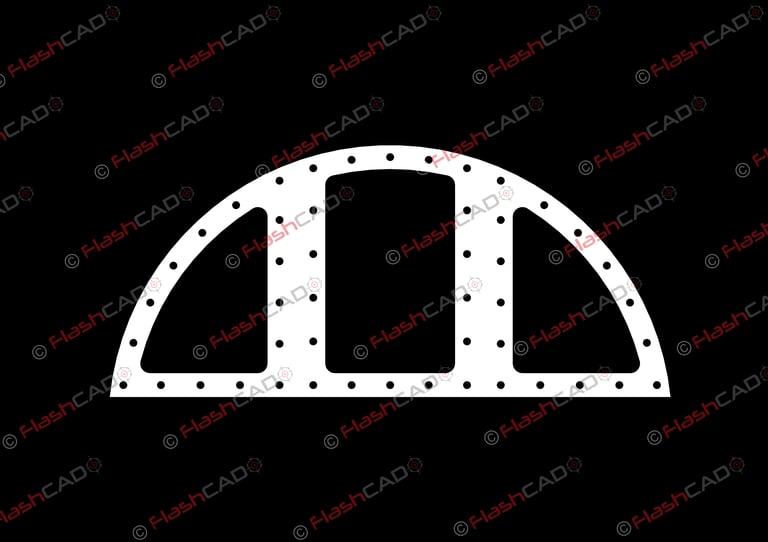

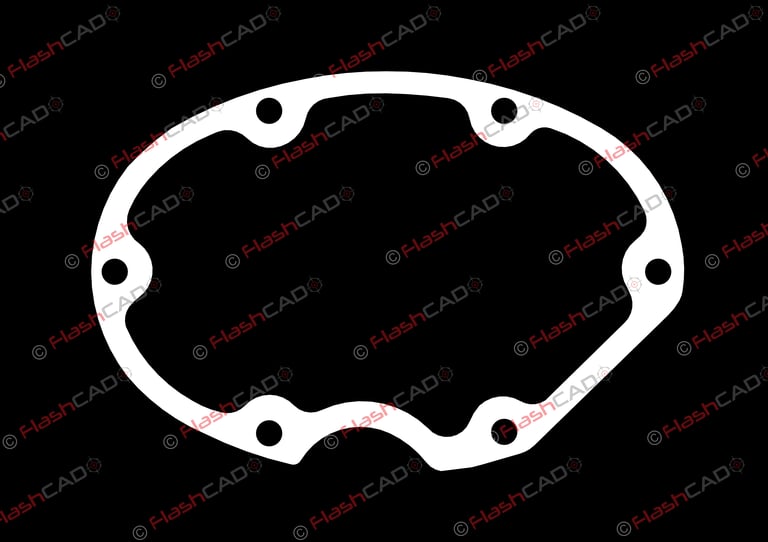

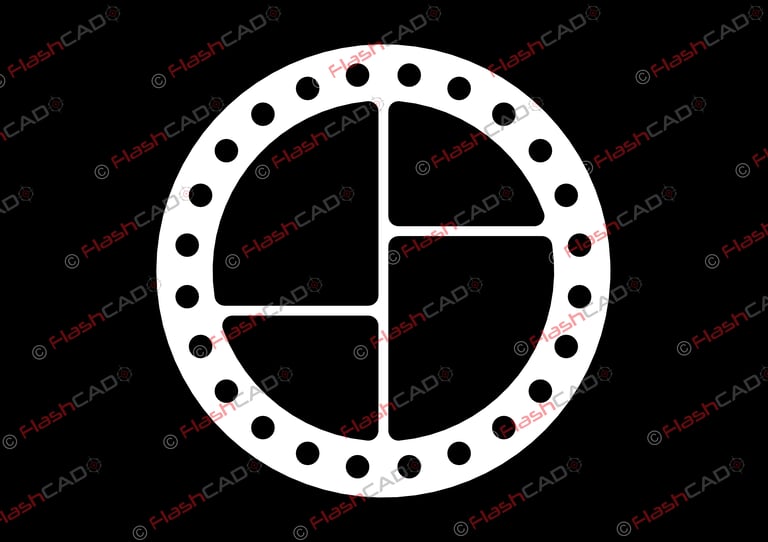

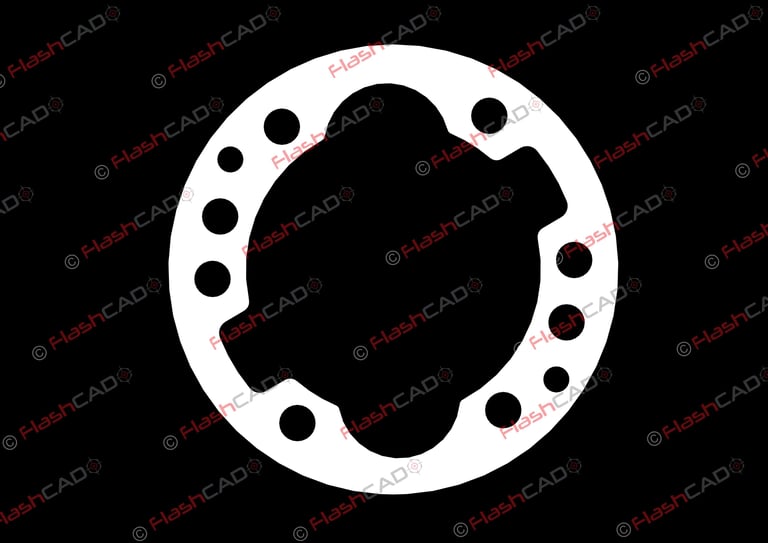

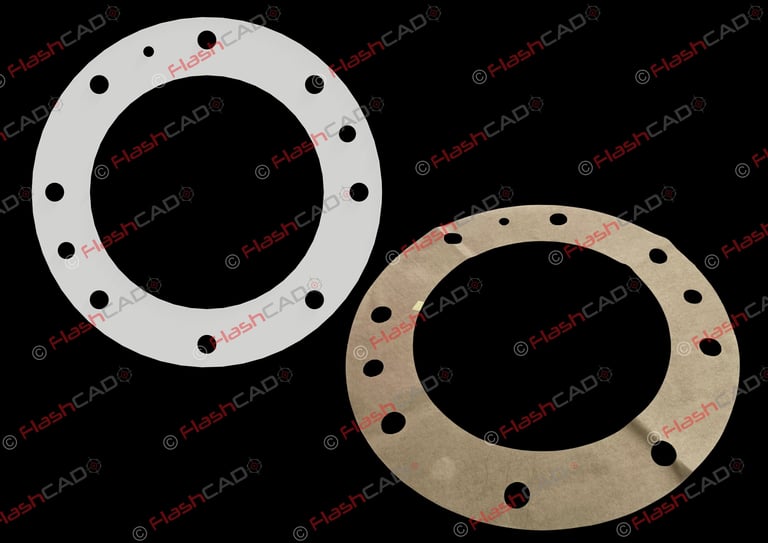

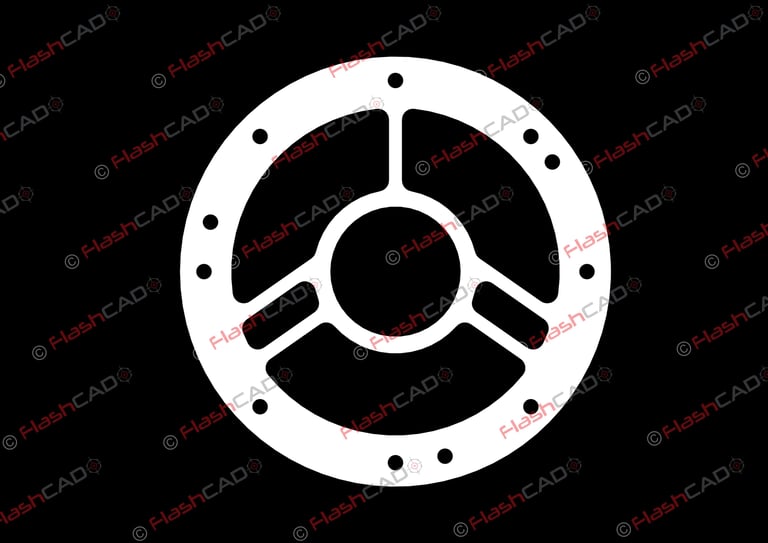

View our portfolio to see only a few of them to get you a bit of an idea of our capabilities in this industry.

We provide our drafting service to manufacture gaskets in Australia to international standards, in quick turnarounds to cater to the needs of our customers located across the Asia Pacific
